Water Services & Clinical Plumbing

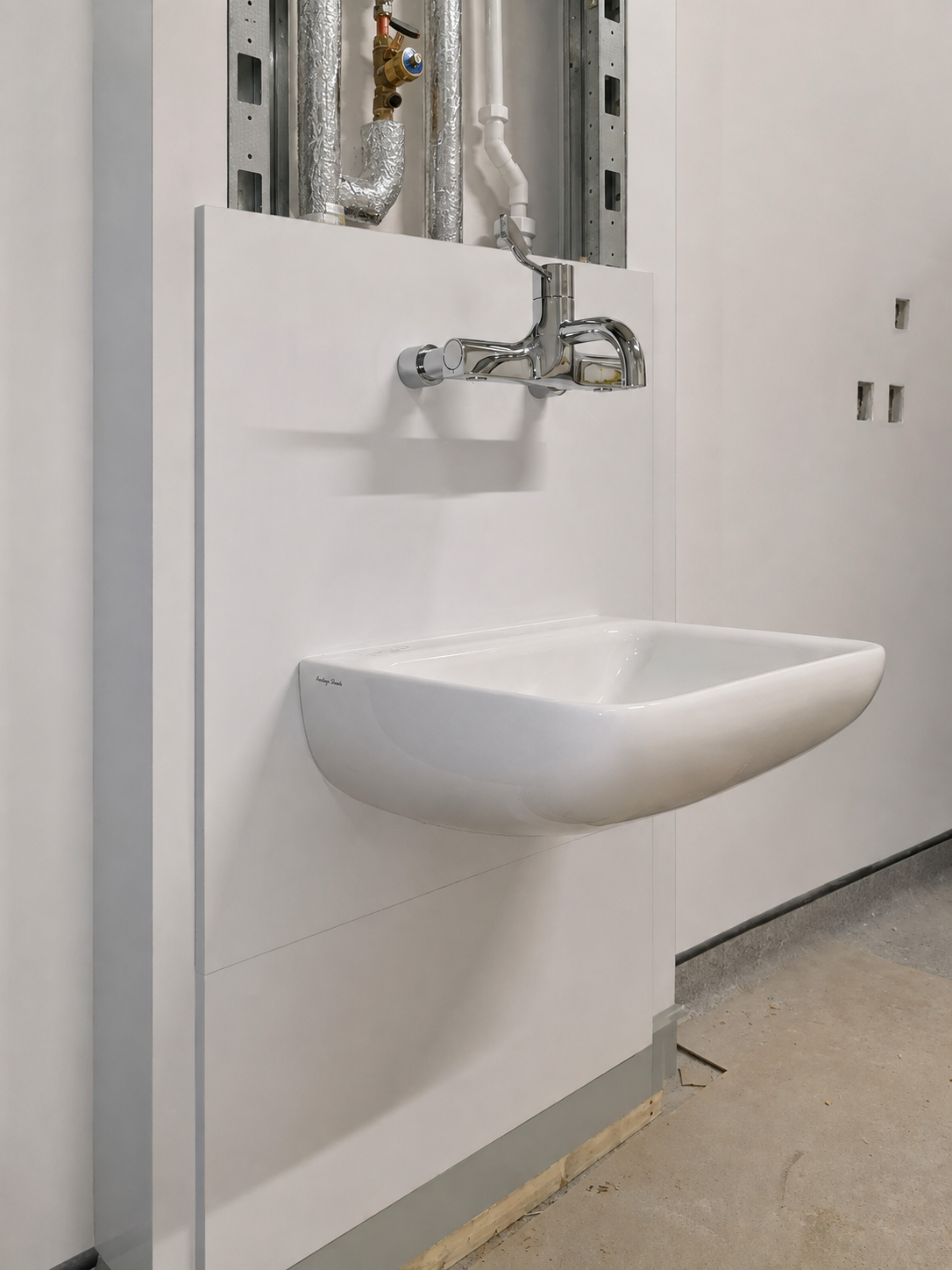

Incoming mains, storage tank and booster connections, with distribution to clinical outlets. Installations include wash hand basins, theatre scrub up troughs, accessible WCs and dirty utility slop hoppers.
← All projects
Southend Community
HEALTHCARE
Southend Community
Diagnostic Centre.
Temporary services and permanent mechanical installations across a phased healthcare development.
Explore our scope
LOCATION
Southend-on-Sea
SECTOR
Healthcare
OUR PACKAGE
Public Health & Mechanical
DELIVERY BASIS
Supply & Install
01 / THE PROJECT
An Operational First Phase.
A Wider Installation.
Pintec installed temporary water services for the first operational phase of Southend Community Diagnostic Centre while progressing the permanent mechanical and public health installation across the wider development.
Appointed by the M&E contractor on a supply and install basis, our package covers incoming water infrastructure, clinical plumbing, drainage, heating and chilled water distribution. The centre includes NHS diagnostic services, consulting rooms, theatres and staff facilities.
02 / OUR SCOPE
Water, Heating
& Cooling Systems.
From incoming water and plant connections to distribution pipework and clinical outlets.
Our capabilitiesHeating & Chilled Water
Low temperature hot water (LTHW) and chilled water distribution serving fan coil units, heater batteries and MRI equipment, with threaded mild steel pipework and flanged prefabricated sections.
Drainage & Alterations
Fusion welded HDPE and solvent weld drainage installations, with cast iron used for modifications to drainage services.
Plant Connections & Testing

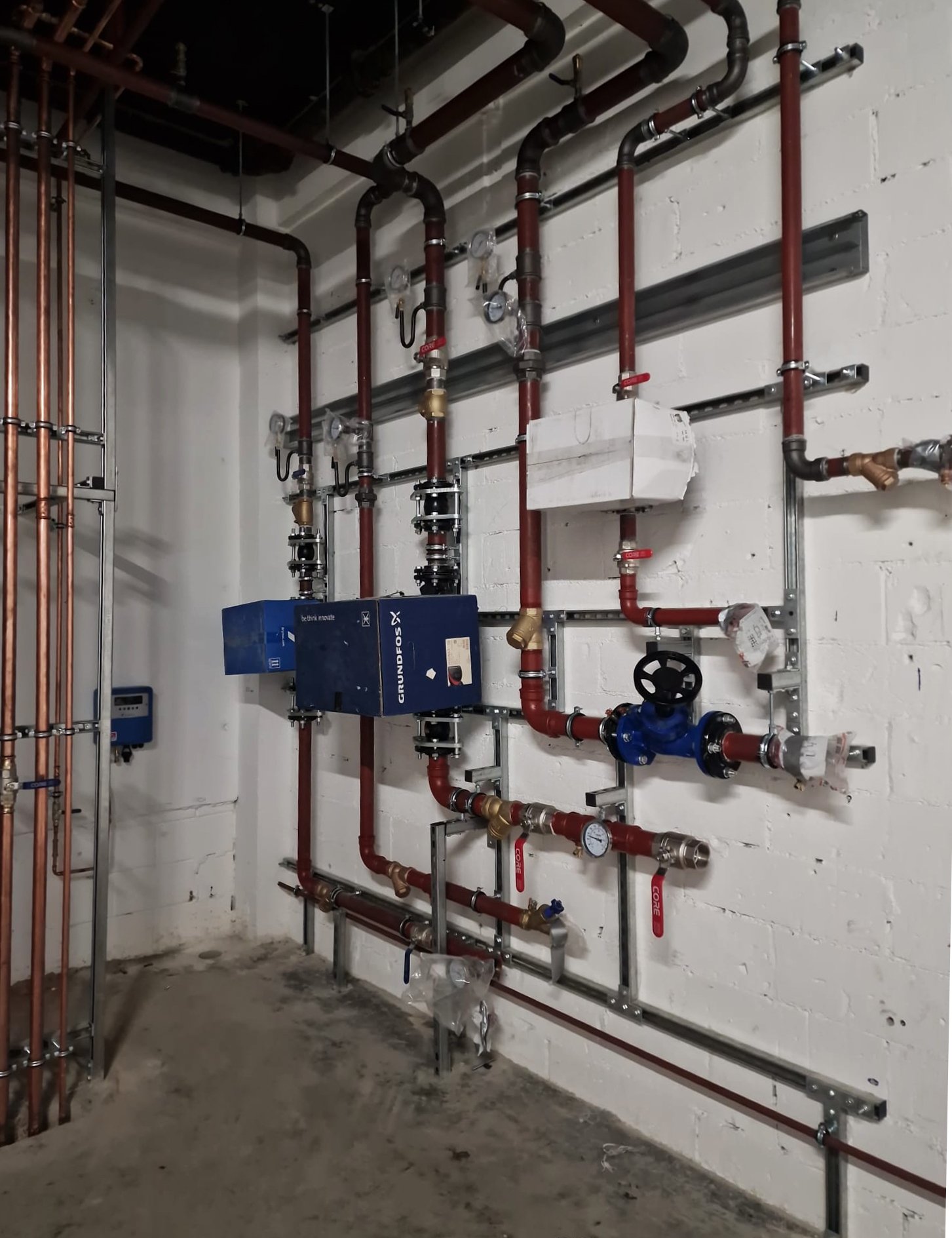

Plant room pipework, valve sets and equipment connections. The agreed testing scope includes pressure testing services and air and pour testing drainage.
03 / PHASED DELIVERY
Keeping Phase 1 Operational.
PHASE 1 / OPERATIONAL
Temporary Water Services
Pintec installed a temporary water heater and isolated part of the water distribution to supply the first phase’s sanitaryware.
The first phase services have been maintained while the permanent installation has progressed across the wider footprint.
WIDER WORKS
Permanent Plant & Distribution
The LTHW Plant Room and pipework connections to four air handling units are installed. The wider package includes chilled water distribution from four rooftop chillers.
04 / PLANT & SYSTEMS
Heating, Cooling & Air Handling.

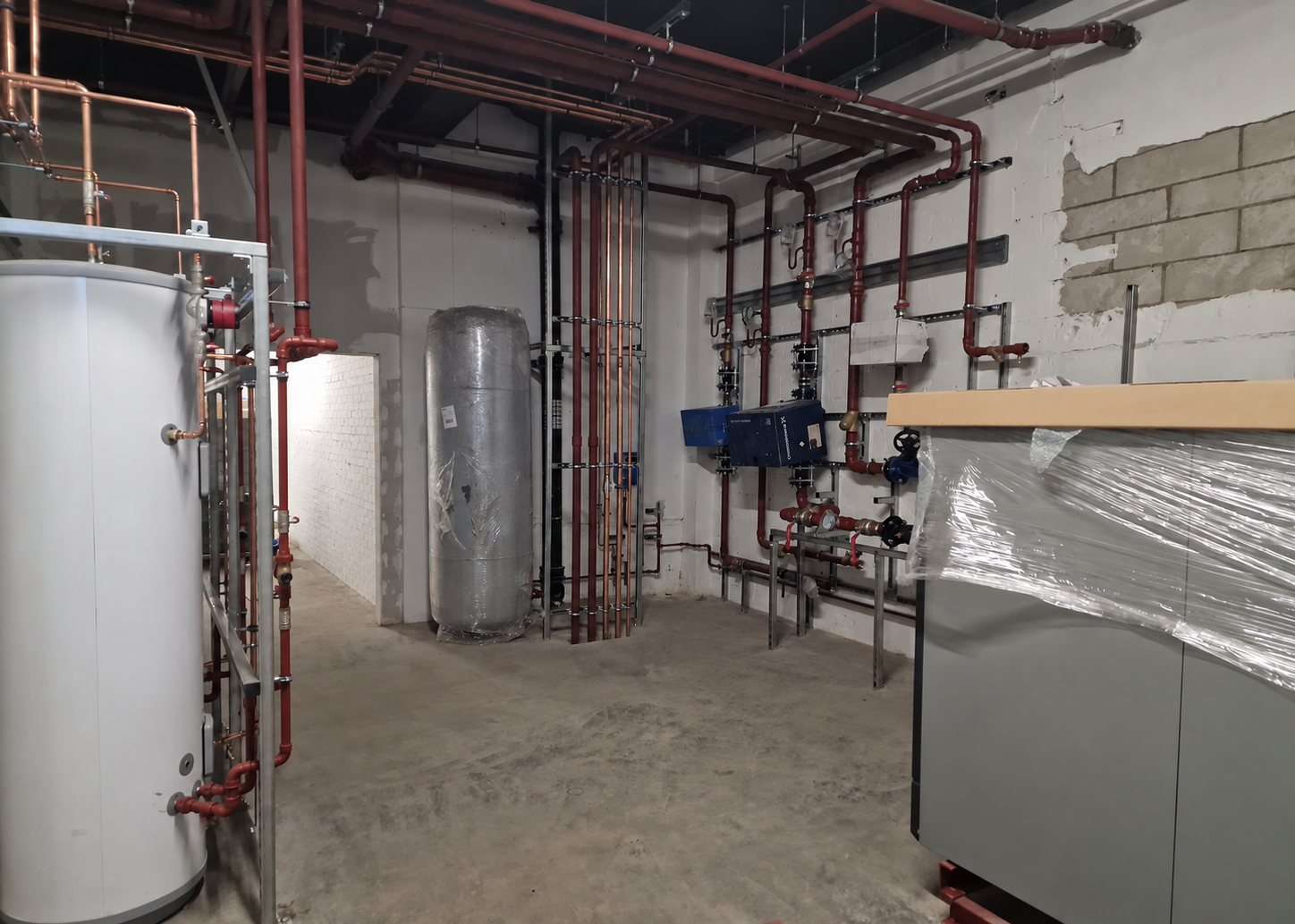

LTHW Plant Room

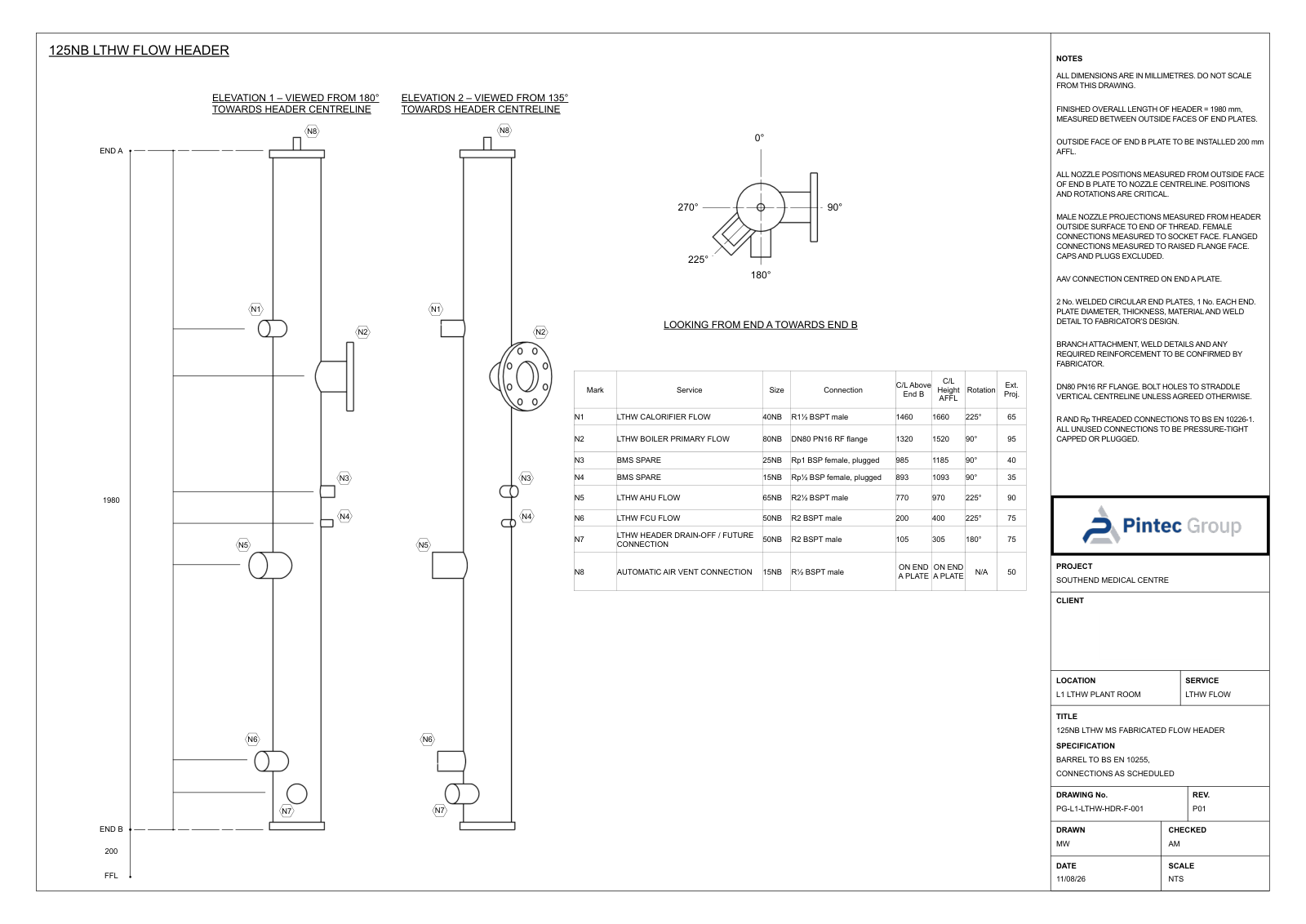

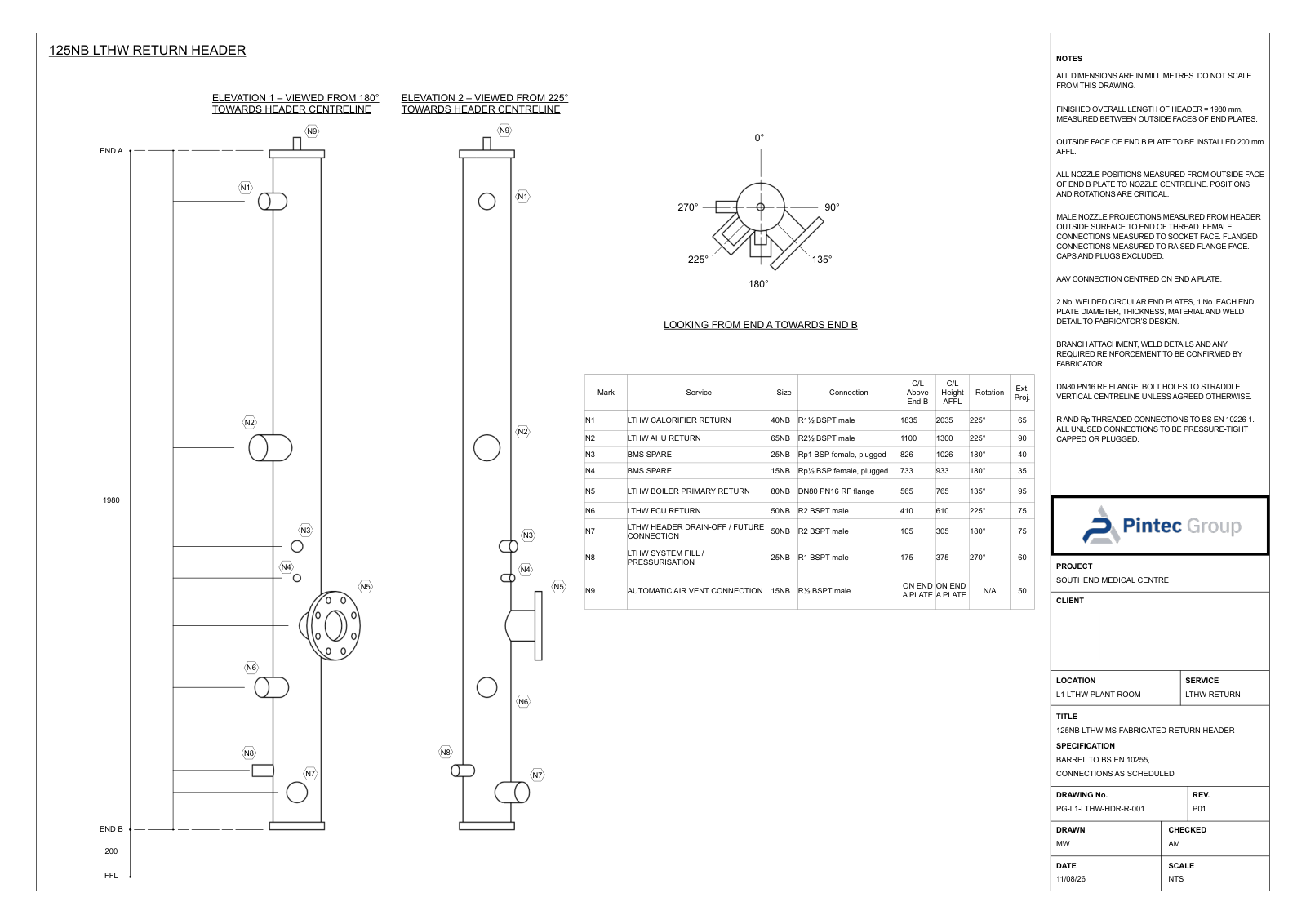

Full pipework installation, including the flow and return headers serving the heating distribution.

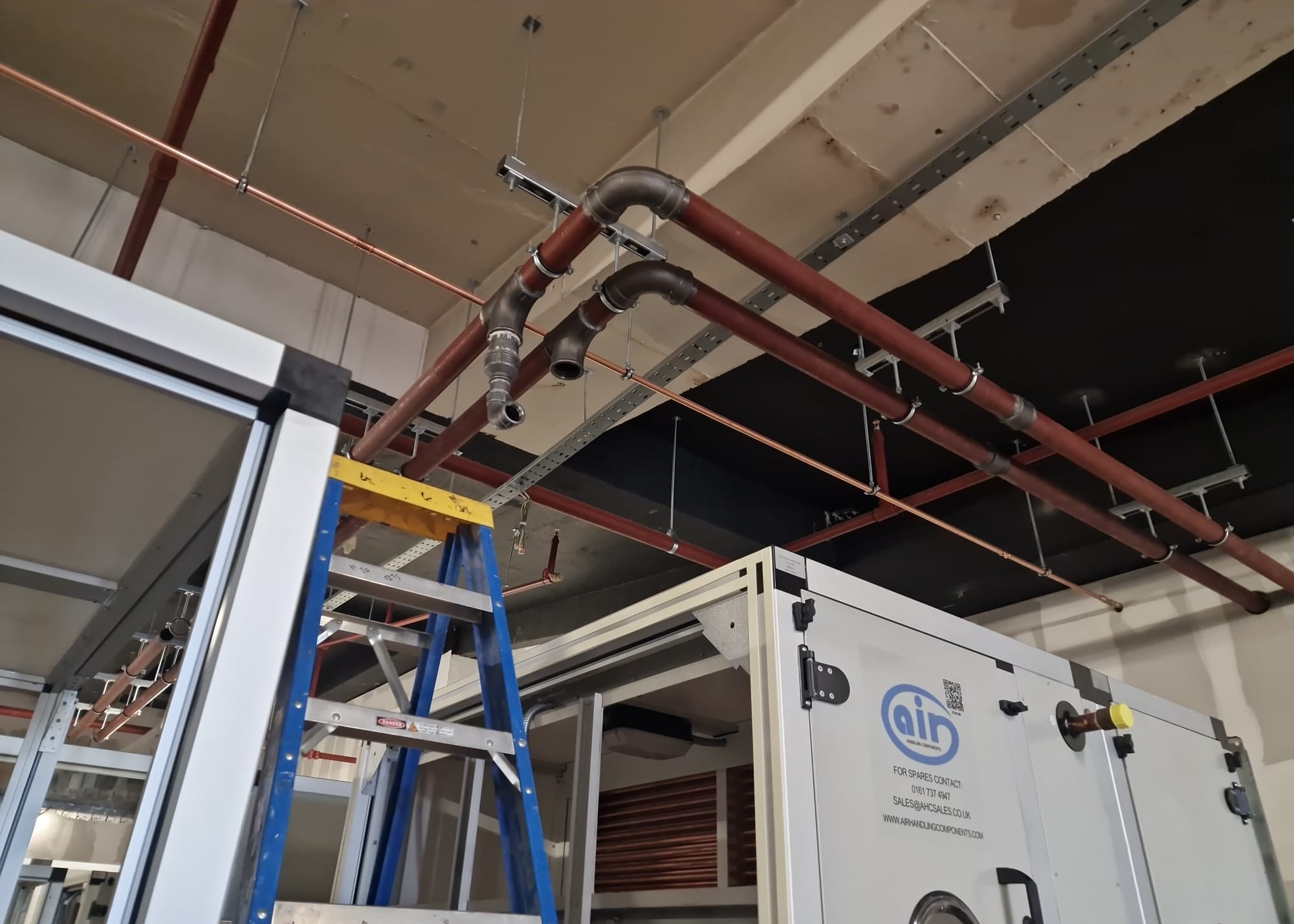

Installation CompleteFour AHUs
Pipework, valve sets and final connections to the four air handling units serving the project.
Connections InstalledFour Rooftop Chillers
Chilled water pipework from the roof serving the MRI installation and air handling units.
Pipework in ProgressPIPEWORK & JOINTING
The Installation Systems.
- Copper
- Press fit copper pipework.
- Mild Steel
- Threaded mild steel pipework with black malleable screwed fittings, alongside flanged prefabricated pipework.
- Drainage
- Fusion welded HDPE and solvent weld systems, with cast iron used for modifications.
LTHW PRIMARY PIPEWORK
From Drawing to Installation.

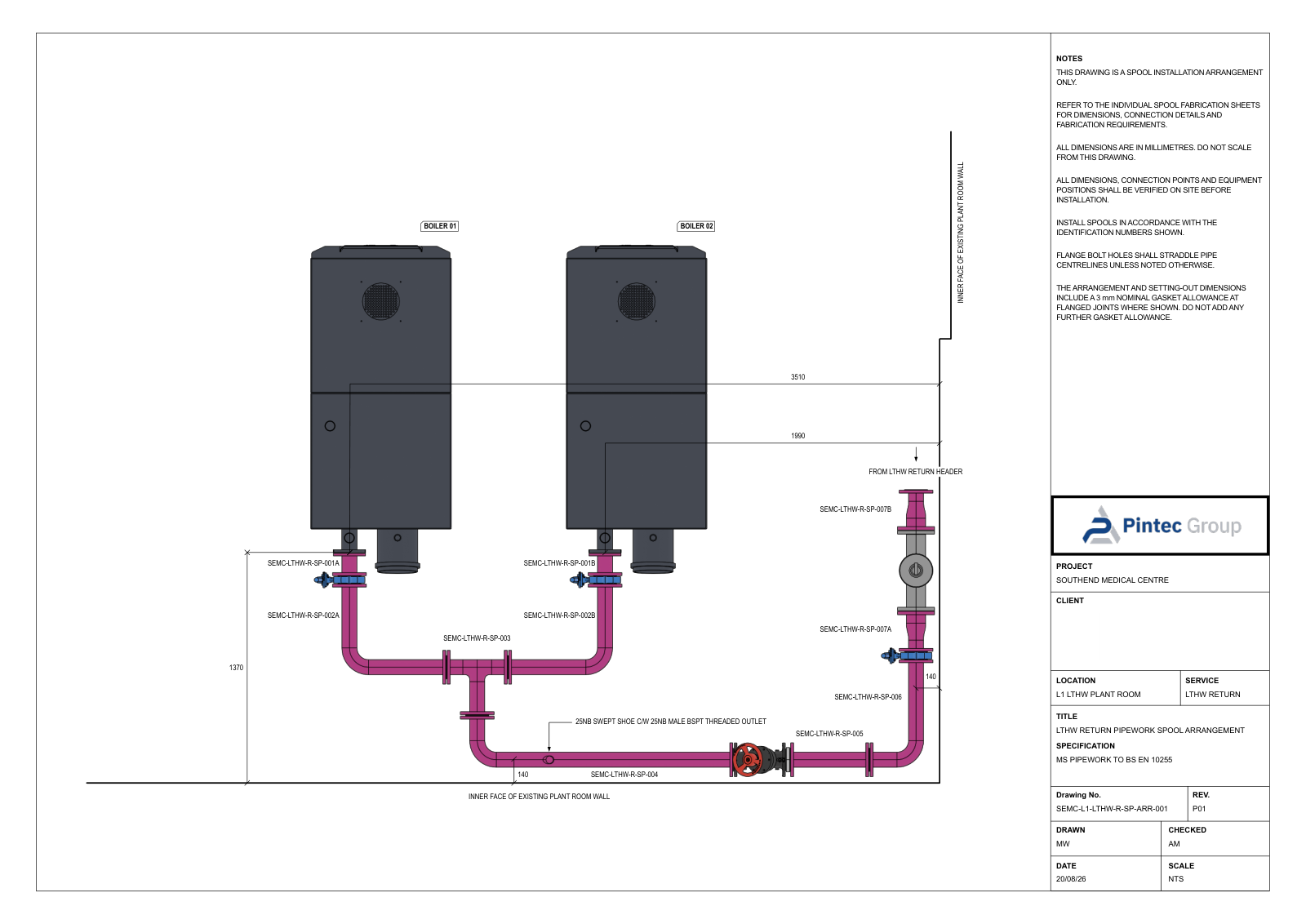

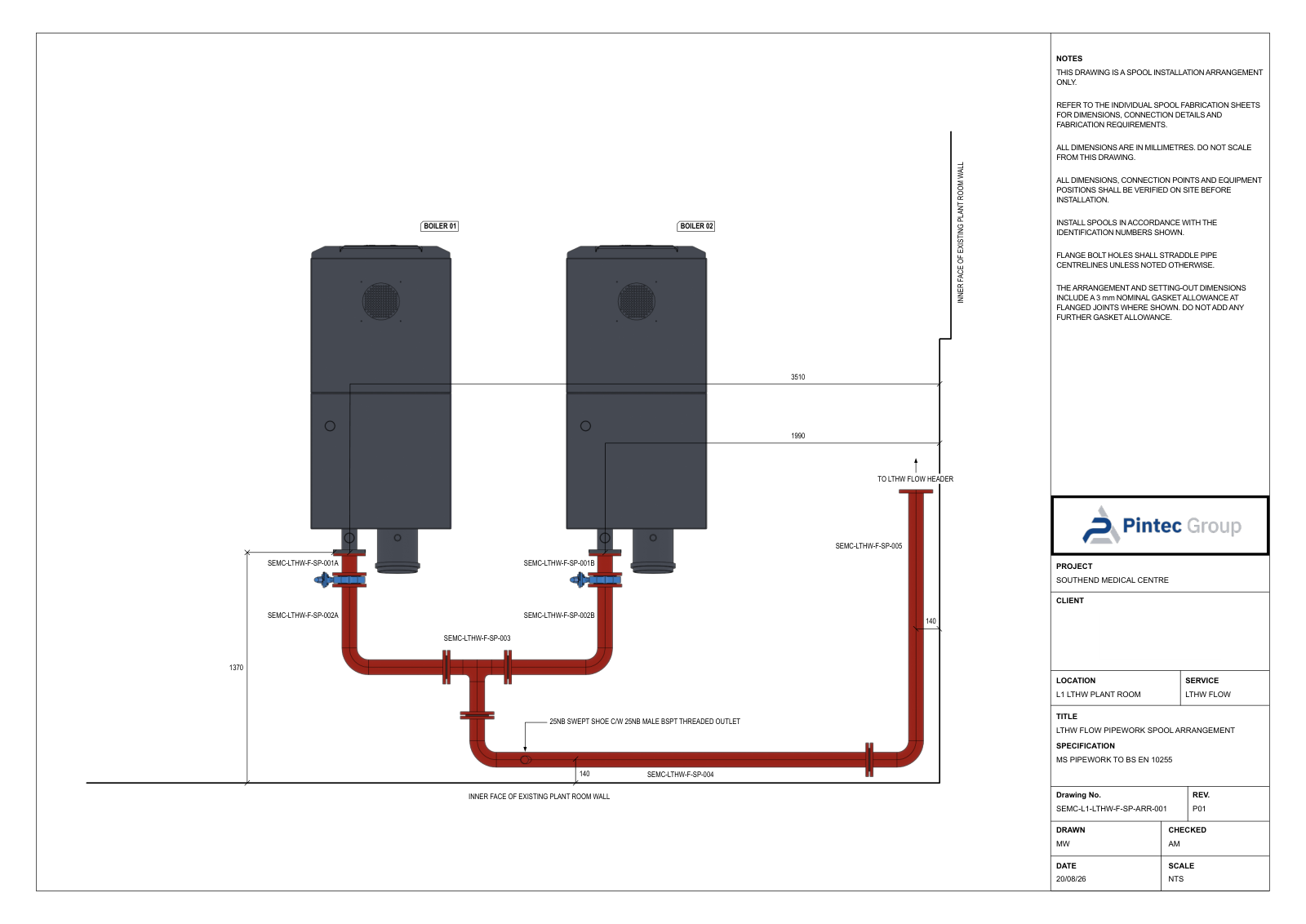

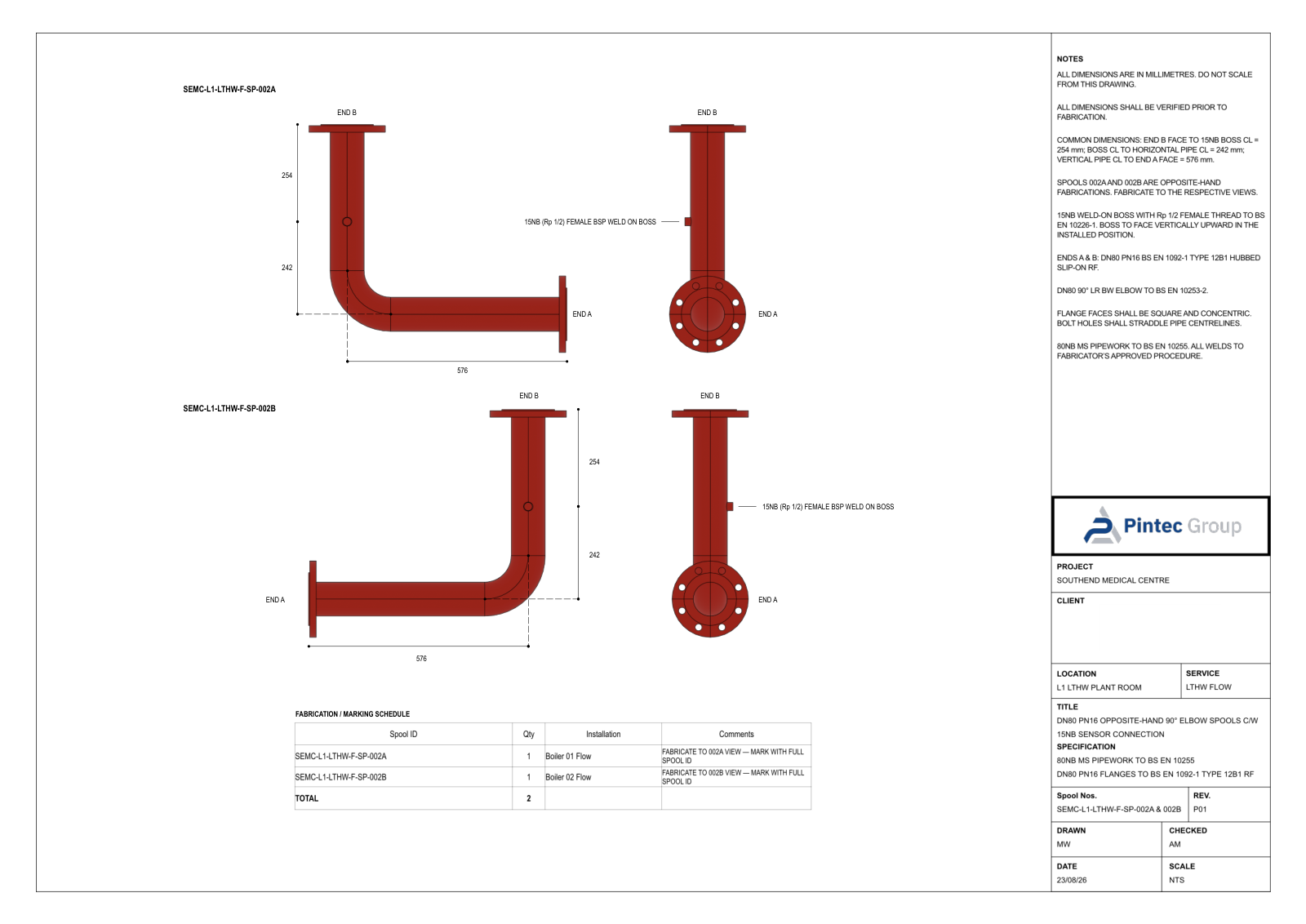

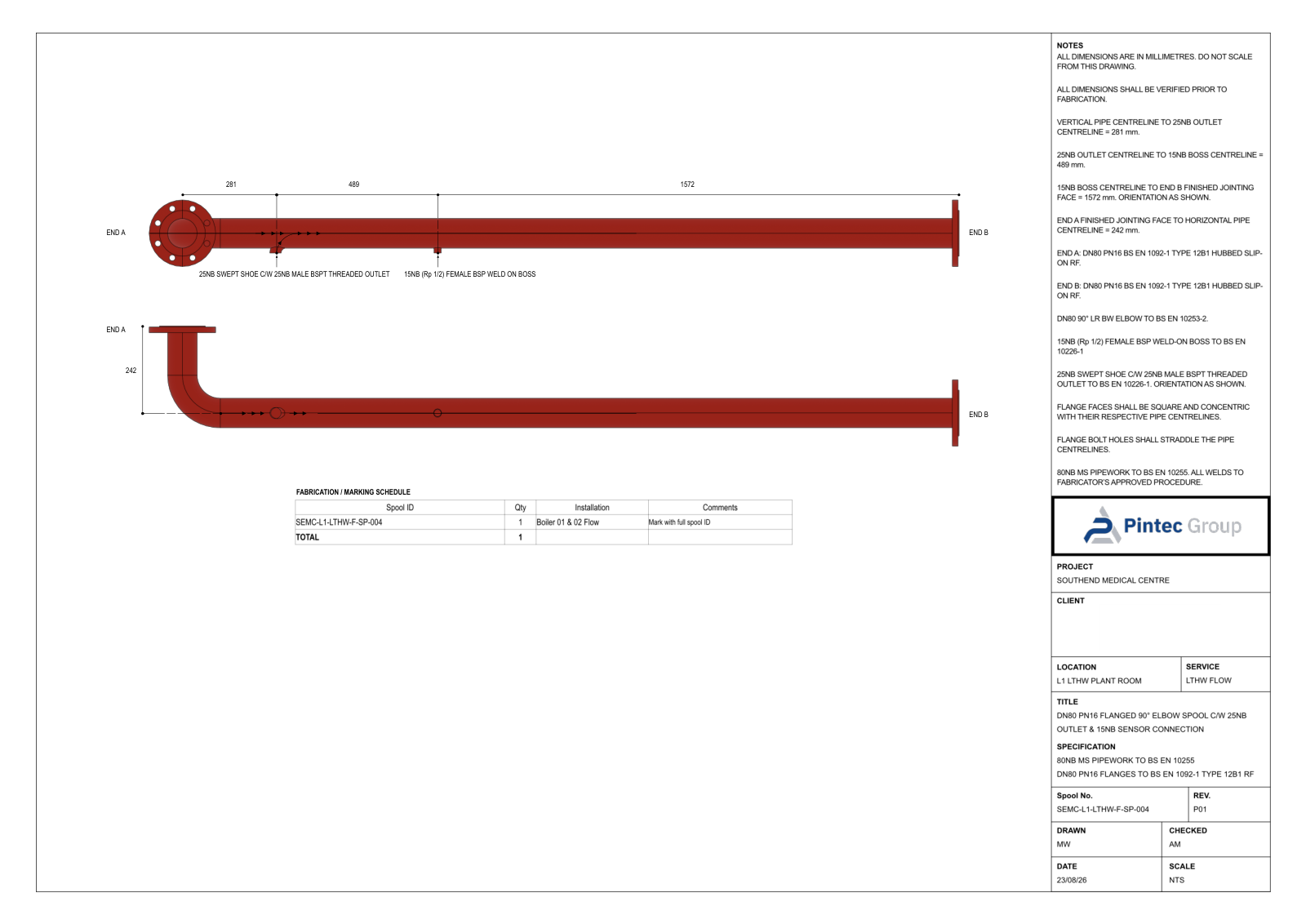

Pintec developed the boiler and pipework arrangement, with measured layouts and spool drawings used for coordination, fabrication and installation.

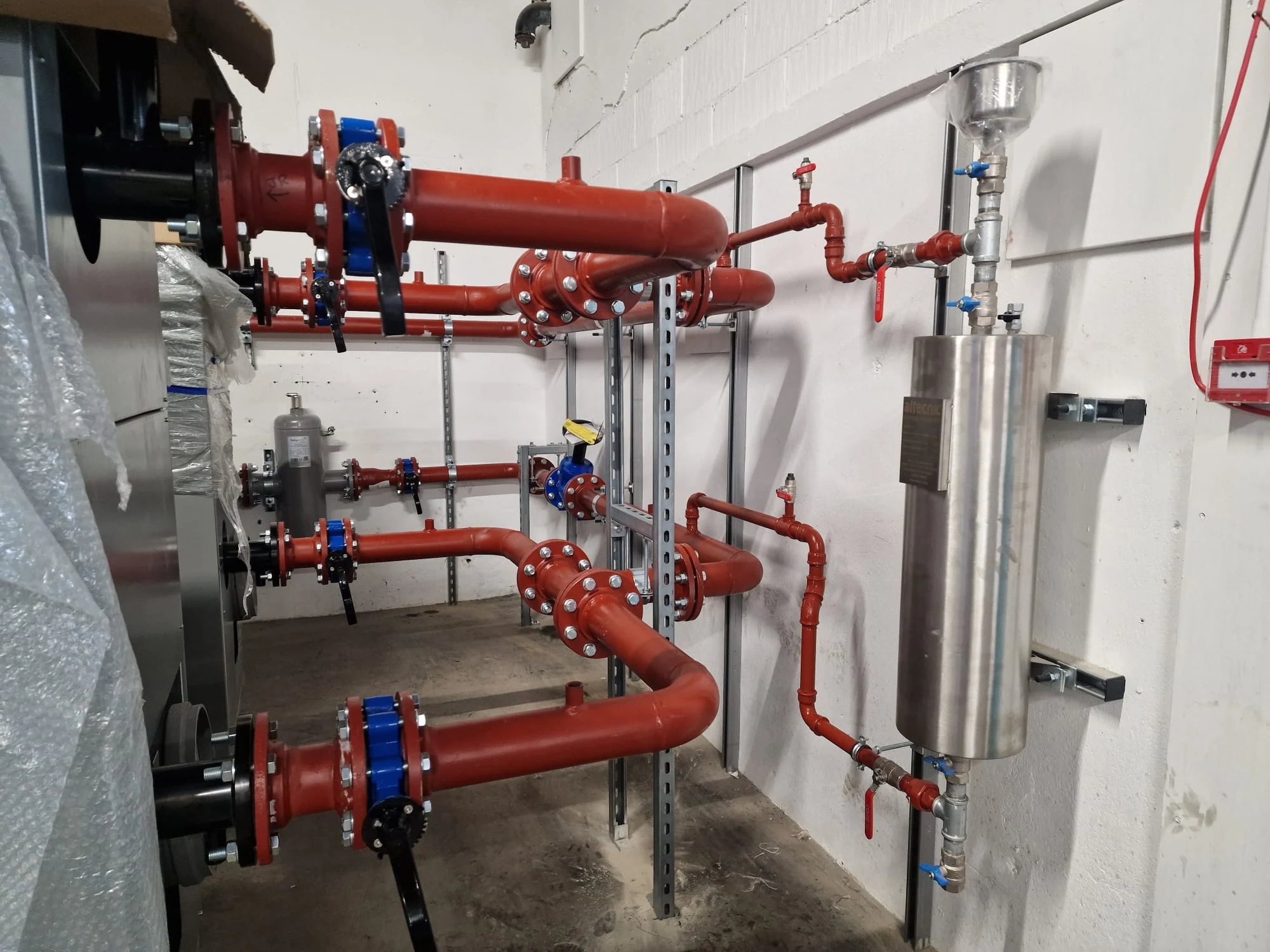

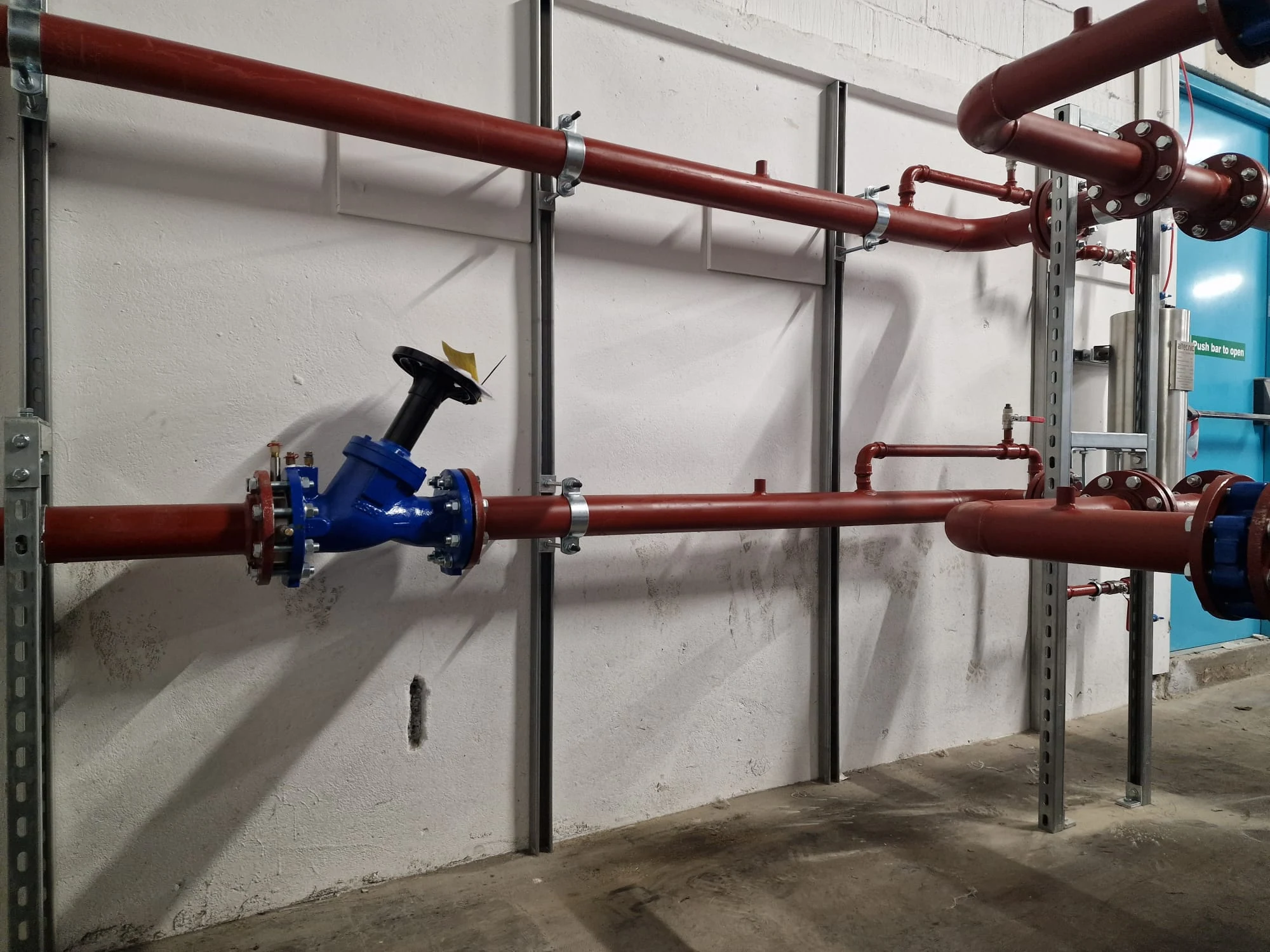

Prefabricated flanged pipework installed at the boilers, following the project’s arrangement and spool drawings. Installation in progress · September 2026
05 / ON SITE
Project Gallery.
